McLEOD HYDRAULIC CLUTCH CONVERSION - CHEVY TKO500 TKO600 3550

Wilwood / McLeod Racing

Regular price $485.00


1300 Series Hydraulic Clutch Conversion
Pedal Effort 20% Less than Stock Mechanical or Cable Linkage.
Custom Installation Required

The "Push Style" Clutch Master Cylinder can be mounted on the firewall or frame rail depending on requirements.
6:1 Pedal Ratio Recommended

Kit includes: Clutch Master Cylinder & Slave Cylinder with (2) Steel Braided Lines; One Supply Line & One Bleeder Line (11" Length).

Complete kit except steel braided line which runs from master to slave cylinder & Heim Joint to connect master cylinder to pedal.

Check your "A" Dimension in the chart below.  Distance from Bellhousing to Pressure Plate should measure less than 3".

Application: GENERAL MOTORS 1955-2006 V8 ; TREMEC 5 SPEEDS TKO500/600, 3550 & TKO, 2057,1-1/8X26 Input

*
WE ALSO SELL OFFSET SHIFTERS TO ALIGN YOUR SHIFTER FOR USE WITH A STOCK CONSOLE OR PREFERRED LOCATION.

The 1300 series bolt on bearing is intended to replace your OEM bearing retainer when your "A" measurement is less than 3". These bearings are made of the finest hard anodized billet aluminum, along with quality elbow swivel fittings and high pressure stainless steel braided lines. These high quality components make the Mcleod bolt on hydraulic throw out bearing extremely durable, and the best in the market today! These assemblies may be used to eliminate the need to fabricate complex clutch linkage when swapping transmissions.

Kit Includes: (1) Internal Bearing/Slave cylinder assembly with (2) 11" stainless steel braided lines, (1) for bleeding (1) for input & (1) 3/4" Master Cylinder with remote reservoir.

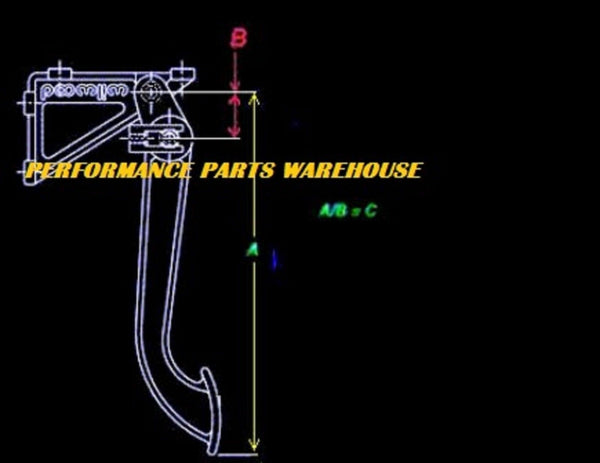

Formula for Pedal Ratio:

Pedal ratio is the ratio of leverage your clutch pedal applies to the master cylinder. To determine the pedal ratio you need to measure the height of the pedal to the pivot point then divided the measurement of the pivot point to the lower arm that controls your rod to the master cylinder.

A = height of pedal
B = center to center measurement of the lower arm
C = pedal ratio
A divided by B equals C
Or example 9" divided by 1.5" equal 6 to 1 ratio.


If you apply 100 pounds of pressure to the clutch pedal, 100 pounds X (6 to 1) = 600 pounds of pressure. So, if the clutch pedal has been modified from its' original design the pedal ratio is effected drastically. You can now see the pedal ratio is a "multiplier" of the pressure you apply with your foot, because this is the leverage that is applied to the master cylinder.

Now, take this same formula and substitute 2" instead of 1.5" you end up with a 4.5 to 1 ratio. Multiply 4.5 times the 100 pounds of applied pressure and you get 450 pounds instead of 600 pound. That half inch cost you 25 percent of your clutching power. The same thing applies when you shorten the upper measurement.
